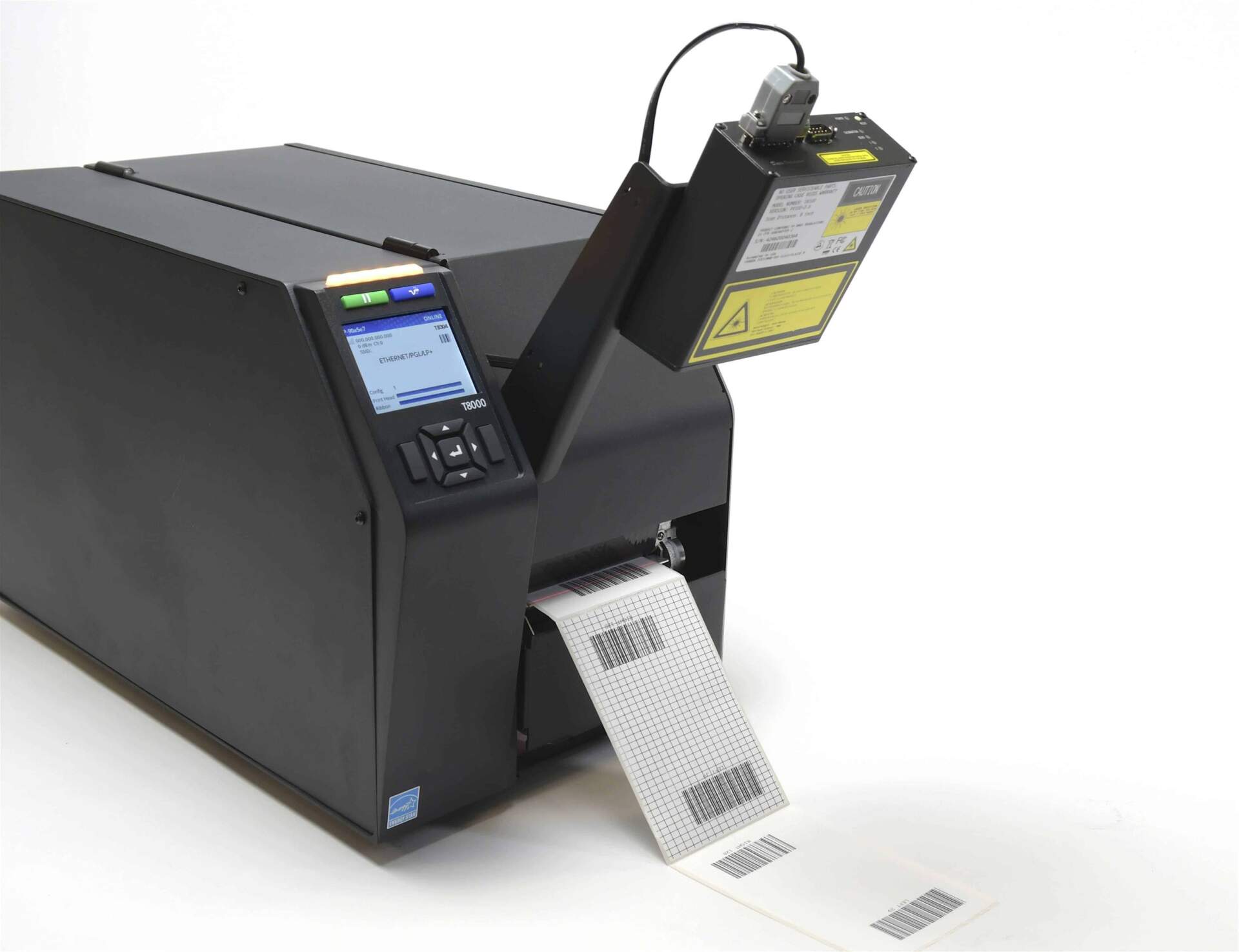

Printronix ODV-1D – Printronix’ exclusive ODV (Online Data Validation) technology reads each barcode as it is printed, strikes out rejected barcodes and reprints a new label.
Printronix’ exclusive ODV (Online Data Validation) technology reads each barcode as it is printed, strikes out rejected barcodes and reprints a new label.
Our exclusive Online Data Validation (ODV™) with barcode validation ensures 100% accurate barcodes 100% of the time.
Eliminate compliance fees and returned shipments due to unreadable barcodes . Easy to use, ODV reads each barcode as it is printed, strikes out rejected barcodes and reprints a new label. Available as an option on the T8000 and T6000 thermal printers. For more information visit the individual printer pages.
Eliminate chargebacks due to refused or delayed shipments
Analyzes each barcode immediately with minimal effect on throughput
Eliminate unscannable barcodes from entering into your supply chain distribution system
Reduce the labor costs and downtime associated with an unattended solution
Capture and display the raw data within each barcode, to provide further assurance that critical data, such as serialized barcodes, print correctly
Printronix ODV-1D BARCODES SUPPORTED
• Code 39
• CODABAR
• Interleafed 2 of 5
• Code 93
• Code 128
• UPC/EAN plus add-ons
• PDF417 (Limited)
• Check linear start and stop bar only
Printronix ODV-1D LABEL REQUIREMENTS
• Quiet Zone: Minimum 10 times x-dimension
• Barcodes per line: UP to 4 codes on the same horizontal line
• Barcodes per form: Up to 99 codes per form
• Barcode orientation: Picket fence only
• Horizontal Spacing: Minimum of .5” between codes on the same horizontal line
• Barcode Height: Minimum barcode height is .13”
• TOF to TOF Minimum distance .5”
